- Wrap Labelers are used to apply self-adhesive labels onto round type products with partial or a full wrap with or without Orientation
- Our Wrap Label Applicators can range from Push-through Semi-Automatic to High-Speed Systems (>250bpm)
- Vertical & Horizontal Wrap Systems, Star Wheel Configurations, Table-Top, Rotary
- Easily Integrated into Existing Lines. Many Options including Coding, Vision Systems, and more…

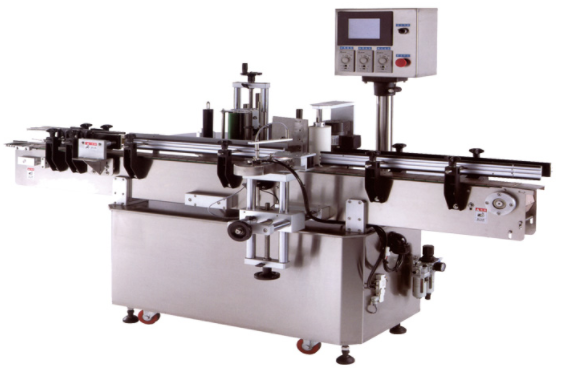

| Model: | 130 Series | 215 Series | 510 Series | 515 Series | 625 Series |
|---|---|---|---|---|---|
| Type: | Semi-Auto / Table-Top for Round Products | Automatic for Small Diameter Products | Automatic Standard Wrap for Round Products | Automatic 3-Point Turn / Wrap for Round Products | Automatic 3-Point Turn / Wrap for Round Products |
| Label Length: | 26 to 200mm | 15 to 80mm | 10 to 300mm | 10 to 300mm | 10 to 300mm |
| Label Width: | 10 to 120mm | 10 to 110mm | A: 10 to 100mm C: 10 to 170mm D: 10 to 210mm | A: 10 to 100mm C: 10 to 170mm | A: 10 to 110mm C: 10 to 170mm D: 10 to 220mm |
| Speed: | 10 to 40 ppm | 38 to 115 feet/min | 38 to 115 feet/min | 38 to 115 feet/min | 38 to 115 feet/min |
| Product Dia. | 8 to 100mm | 10 to 30mm | A: 25 to 100mm C: 40 to 150mm D: 40 to 220mm | A: 25 to 100mm C: 40 to 150mm D: 40 to 220mm | A: 30 to 100mm C: 40 to 150mm D: 40 to 220mm |
| Options: | Hot Stamp, TIJ, Clear Label Sensor, Reject | Can be fully customized | Can be customized, no orientation | Fixed Point Orientation, can be customized | Top Hold Down Chain, can be fully customized |
| Container Type: | Stable / Unstable | Unstable | Stable | Stable | Stable |
| Product Apply Position: | Horizontal | Horizontal | Vertical | Vertical | Vertical |
| # of Label Heads: | 1 | 1 | 1 | 1 | 2 |
Label Applicators come in various Types. Choosing the correct team to evaluate & recommend equipment is KEY to First Time Success
- Wrap Labelers for Round Bottles and Semi-Round Products
- Front & Back for two-sided applications on Flat Bottles, Squares, Jugs, Ovals
- Top & Bottom Applicators for many products
- Flat Product Labelers for Bags, Boxes & more
- Semi-Automatic Table-Top Systems
- Fully-Automatic Customized Systems…
- One and Two Sided Label Applicators from Table-Top to Fully Automatic
- Table-Top Bag & Carton Labelers – Feeder optional
- Recessed Area Tamp Applicators for Special Custom Containers
- Hot Stamp, TJI, TTO, CIJ, RFID Coding, Verification & Rejection, ect…
- 2 Panel, 3 Panel, 4 Panel Wipe Down Applications: Saloon Doors, Active Wipes, Rollers
